Furniture Screw Packing Machine With Check Weight

Description

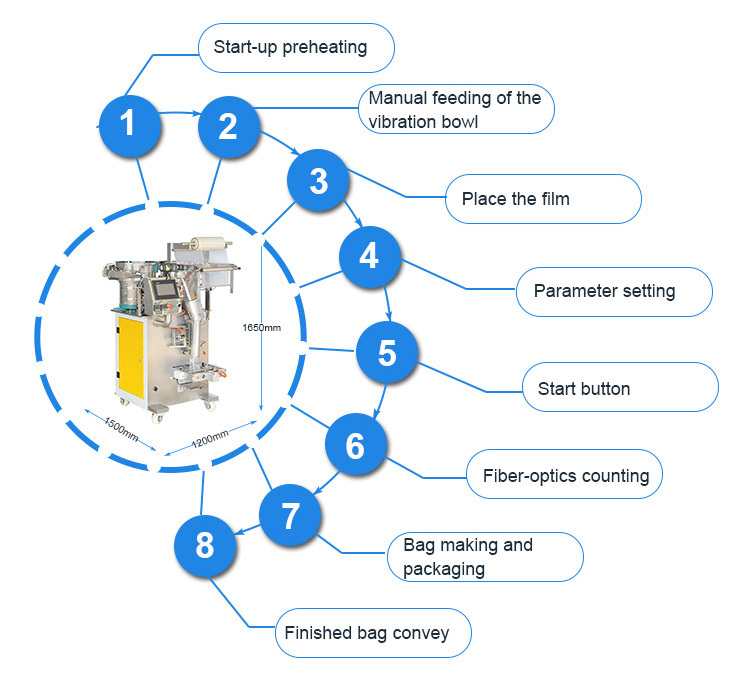

Operation Process

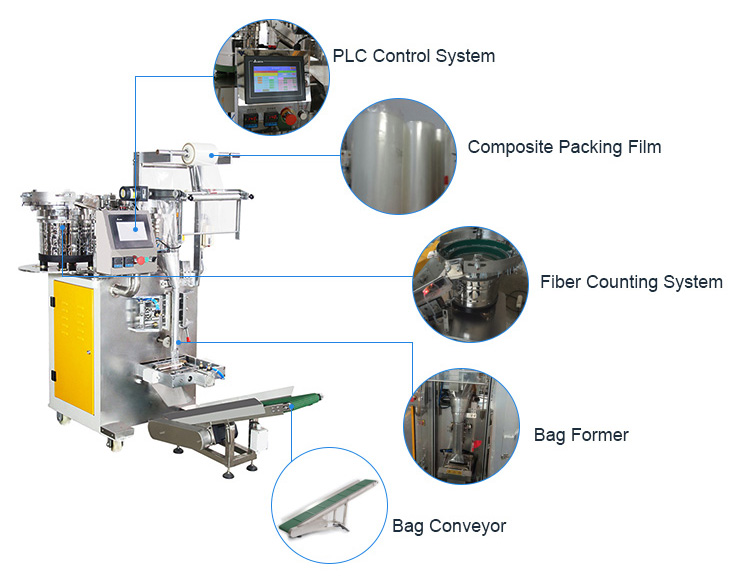

Details Description

Scope of Application

Model parameters

Model	FY-240A	FY-420A
Packing size	L: 30-180mm, W: 50-140mm	L: 50-300mm, W: 50-200mm
Max film width	300mm	420mm
Packing material	PA/PE, PP/CPP, PET/PE
Counting capacity	1-20 pcs/bag; 1-3 types/bag
Packing speed	10-70 bag/min
Power	AC220V/50-60Hz/2kW
Machine size	1500mm(L)* 1200mm(W)* 1650mm(H)

Application

Feiyu Introduction

Company Profile

Shanghai Feiyu Packaging Machinery Co., Ltd. was established in 2008. Our automatic packaging machines used in 30+ countries, to reduce labor cost and increase capacity for industries, such as Furniture, Electronic, Fastener, Pipe, Garment, Toy and Stationery industry.

– Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
– Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
– Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
– Plastic, pipe fittings (Pipe, Joint etc.)
– Clothes parts (Button, Slider etc.)
– Toys (Toy Building Brick, Dice etc.)
– Stationery (Mark, Pen, Clip etc.)
– Other regular shape parts

Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificate for certain series of our packaging machine (ask our sales team for details).

Order Process

Why Choose Us

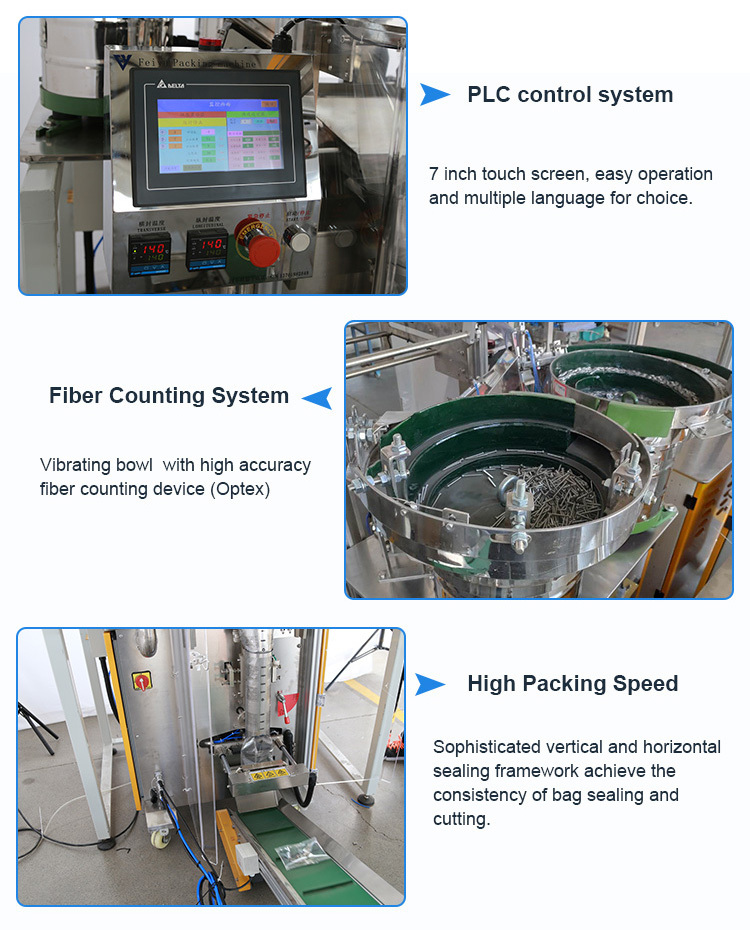

1. Dual inverters control, bag length can be set and cut in one step, to save time and bags.

2. Computer interface operation, convenient and quick parameter setting.

3. PLC controller is stable performance available for upgrade.

4. There are many patented technologies, such as patent of infrared fiber optics counting device (Patent No. ZL2010 20695240.5), patent of weight re-checker (Patent No. Zl201110083021.0).

5. Self failure diagnosis, clear failure display; positioned stop function, avoid knife sticking and film wasting.

6. Using double encoder enables stable performance.

7. Strengthened blade holder makes compact sealing.

8. Can be equipped with exhaust device, code printer, smart printer, labeling machine, transfer conveyor and weight re-checker.

9. Selected code system achieves credible Packaging.

10. Simple and automatic packaging achieves high speed and reduce labor.

11. Optional material-cutting proof device, guarantee for using.

12. Multipurpose packaging, suitable for various packaging to similar type of product.

13. Alternative English and Chinese language display. Other languages are also available to order.

Our Service

Before-sales Services:

1. Many professional packing videos, give you direct feeling about our machines.

2. Free packing solution from our R&D department.

In-sales Services:

We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Services:

1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.

2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24/7.

3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.

4. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.

5. We have an experienced team for after-sales service. Any emergency please call our customer service or after-sales manager. On-site repair or instructions are also available.

Packaging & Shipping
