Automatic Nuts Weighing Packing Machine
1. Applications: Screw, Bolt, Washer and other kinds of regular shape products.
2. Weighing and Fiber Counting packing, applicable to one kind with 1-5000pcs/bag.
3. Key parts own many patent technical, such as Fiber-optical device, Fiber-optical re-inspection, Re-inspection weigher.
4. Solid sealing, smooth and elegant bag shape; high effieciency and durability, can be equipped with exhaust device, printer, labeling machine, transfer conveyor and weight checker.
5. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when you meet, the machine will be stop automatically.
Description

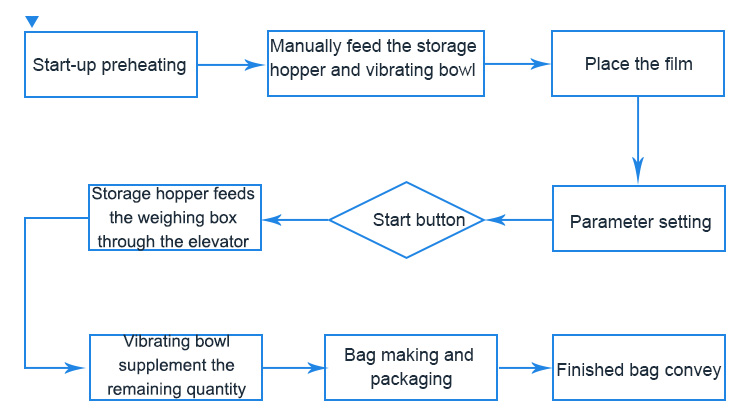

Operation Process

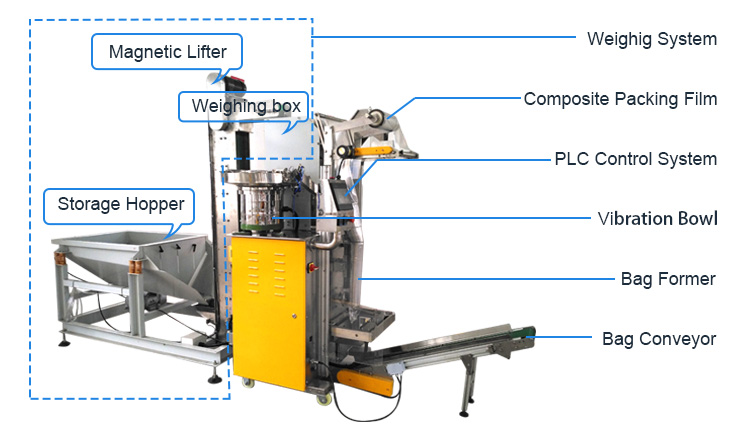

Details Description
Scope of Application
Model parameters
|
Model
|
FY-240B
|
FY-420B
|
|
Packing size
|
L: 30-180mm, W: 50-140mm
|
L: 50-300mm, W: 50-200mm
|
|
Max film width
|
300mm
|
420mm
|
|
Packing material
|
PA/PE, PP/CPP, PET/PE
|
|
|
Counting capacity
|
1-5000pcs/bag or less than 5kg/bag
|
|
|
Packing speed
|
5-25 bag/min
|
|
|
Power
|
AC220V/50HZ/2LW
|
|
|
Machine weight
|
400kg
|
460kg
|
Application
Feiyu Introduction
Company Profile
Shanghai Feiyu Packaging Machinery Co., Ltd. was established in 2008. Our automatic packaging machines used in 30+ countries, to reduce labor cost and increase capacity for industries, such as Furniture, Electronic, Fastener, Pipe, Garment, Toy and Stationery industry.
– Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
– Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
– Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
– Plastic, pipe fittings (Pipe, Joint etc.)
– Clothes parts (Button, Slider etc.)
– Toys (Toy Building Brick, Dice etc.)
– Stationery (Mark, Pen, Clip etc.)
– Other regular shape parts
Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificate for certain series of our packaging machine (ask our sales team for details).
Order Process
Why Choose Us
1. Dual inverters control, bag length can be set and cut in one step, to save time and bags.
2. Computer interface operation, convenient and quick parameter setting.
3. PLC controller is stable performance available for upgrade.
4. There are many patented technologies, such as patent of infrared fiber optics counting device (Patent No. ZL2010 20695240.5), patent of weight re-checker (Patent No. Zl201110083021.0).
5. Self failure diagnosis, clear failure display; positioned stop function, avoid knife sticking and film wasting.
6. Using double encoder enables stable performance.
7. Strengthened blade holder makes compact sealing.
8. Can be equipped with exhaust device, code printer, smart printer, labeling machine, transfer conveyor and weight re-checker.
9. Selected code system achieves credible Packaging.
10. Simple and automatic packaging achieves high speed and reduce labor.
11. Optional material-cutting proof device, guarantee for using.
12. Multipurpose packaging, suitable for various packaging to similar type of product.
13. Alternative English and Chinese language display. Other languages are also available to order.
Our Service
Before-sales Services:
1. Many professional packing videos, give you direct feeling about our machines.
2. Free packing solution from our R&D department.
In-sales Services:
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sales Services:
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24/7.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We have an experienced team for after-sales service. Any emergency please call our customer service or after-sales manager. On-site repair or instructions are also available.
Packaging & Shipping
Exhibitions, Partners & Valued Clients
